C21-1-UFT02

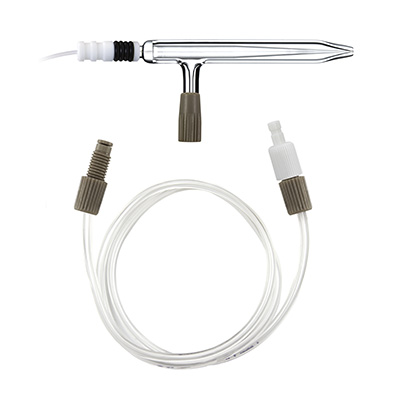

MicroMist HE DC Nebulizer 0.2mL/min
Read more
Show less
A specially designed nebulizer based on our popular MicroMist, designed to efficiently nebulize very small sample volumes at low sample and argon gas flow rates. It is a standard component of the High-Efficiency Sample Introduction System (HE-SIS), widely adopted by leading research organizations and instrument manufacturers for single-cell, single-particle, nanoparticle, and low-volume sample studies, achieving up to 95% transport efficiency when combined with the HE-SIS.
Instrument Compatibility
Standard BioTools (Fluidigm): Mass Cytometer
Specifications
| Material | Borosilicate glass |
| Physical Reproducibility | High approximately 1% |
| TDS Tolerance | Typically up to 15% |
| Flow Rate | 0.2mL/min |
| Relative Standard Deviation (RSD's) | Low, due to highly accurate construction |
| Sample Arm Connector | Unifit Sample Connector |

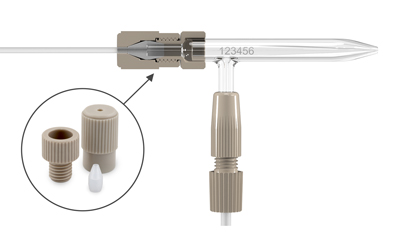

| Gas Arm Connector | Direct Connection (DC) PEEK Fitting |
| Aqueous Solutions ICP-OES | Yes |
| Aqueous Solutions ICP-MS | Yes |
| Organic Solutions | Yes |
| Limited Volume | Yes |
| Tolerance to Particulates | Typically up to 100μm |
| Requirement | Best Performance, Best Sensitivity |
| Volatile Solvent | Yes |
| Precision | High |
| Purity | Good |
Features
- Worldwide standard nebulizer for low-flow ICP-OES and ICP-MS applications
- Enhanced Efficiency: Although the MicroMist nebulizer operates at a lower sample flow rate, the transport efficiency is significantly higher compared to a standard concentric nebulizer.
- Reduced Interferences: The smaller droplet size of the MicroMist HE nebulizer has additional analytical advantages, including reduced matrix interferences and a more robust plasma.
- Tolerance to High Matrix: Although the MicroMist HE nebulizer is a low-flow nebulizer, it still provides a relatively high tolerance to total dissolved solids (TDS) at 15%. Providing the ability to handle a wide range of sample types, including challenging samples such as wastewater, soil, blood, serum, and urine. For the enhanced tolerance to TDS, consider adding an argon humidifier, such as our Elegra.
