AR30-07-FC2E

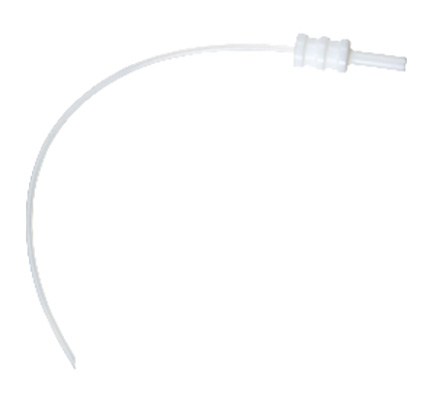

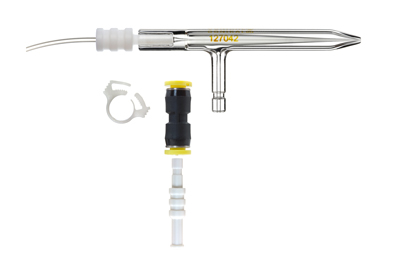

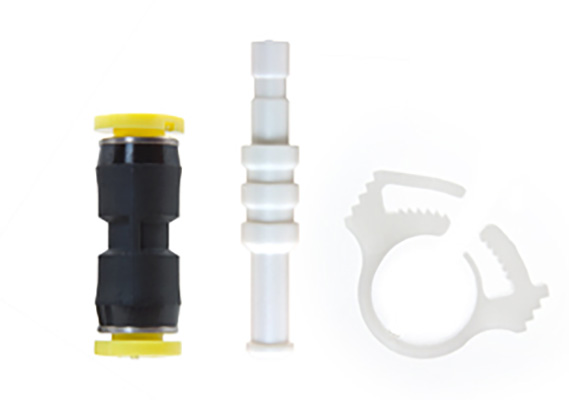

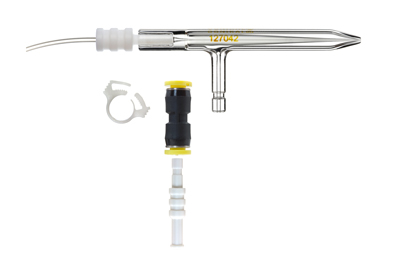

Conikal Nebulizer 2mL/min with EzyFit & EzyLok
The Conikal concentric nebulizer is an exceptional general-purpose nebulizer. The common sample types include routine aqueous, organic applications, and oils that do not require a more specialized design for resistance to particulates or high dissolved solids. The Conikal is recommended whenever samples contain only a moderate concentration of dissolved salts, no particulates, and no hydrofluoric acid.
Specifications
| Material | Borosilicate glass |
| Physical Reproducibility | High (approximately 1%) |
| TDS tolerance | Typically up to 5% |
| High tolerance to particulates | Typically up to 210 μm |
| Self-aspiration | Yes |
| Flow Rate | 2mL/min |
| HF Compatible | No |
| Aqueous and Organic Solutions | Yes |
| Requirement | Routine Operation |
| RSDs | Low due to highly accurate construction |
Features
- An Industry Standard Concentric Design
- Lowest dead volume for rapid washout (4.0 μL)
- Instrument Suitability: ICP-OES and ICP-MS

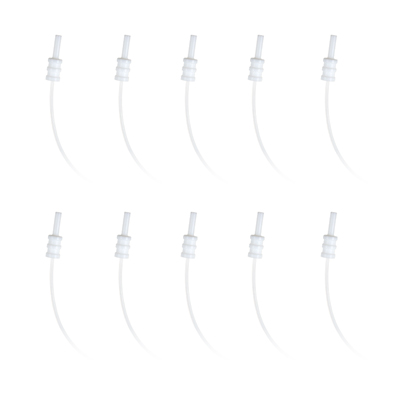

Consumables for AR30-07-FC2E
