A41-07-UM005

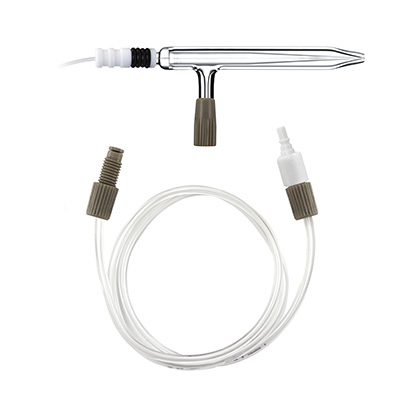

MicroMist DC Nebulizer 0.05mL/min
The MicroMist™ Direct Connect (DC) nebulizer is ideal for low-volume ICP samples. It offers excellent precision with a lower sample uptake rate, making it suitable for applications with limited sample volume or sensitive detection requirements. Industry's tightest tolerances ensure that each nebulizer will perform to the same high standards as the previous one, physical reproducibility within 1%. VitriCone™ Sample Channel is guaranteed uniform from entry point to nebulizer tip and thus resistant to clogging. The Direct Connection (DC) Gas Line is an inert, metal-free argon gas connector. Common samples include drinking water, biological or clinical, precious metals, fine chemicals, volatile solvents, pharmaceuticals, nutraceuticals, radioactive, single-cell, nano particle, microplastics, and cannabis.
Specifications
| Material | Borosilicate glass |
| Physical Reproducibility | High approximately 1% |
| TDS Tolerance | Typically up to 15% |
| Flow Rate | 0.05mL/min |
| Self-aspiration | Yes |
| Relative Standard Deviation (RSDs) | Low, due to highly accurate construction |

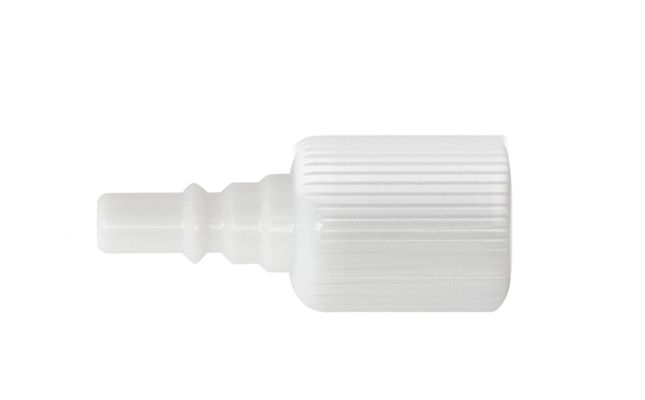

| Sample Arm Connector | UniFit Sample Connector |
| Gas Arm Connector | Direct Connection (DC) PEEK Fitting |
| Aqueous Solutions ICP-OES | Yes |
| Aqueous Solutions ICP-MS | Yes |
| Organic Solutions | Yes |
| Tolerance to Particulates | Typically up to 90μm |
| Requirement | Limited sample volume; volatile organic solvents |
| Volatile Solvent | Yes |
| Precision | High |
| Purity | Good |
| Nebulizer Gas Flow | 0.7 L/min (approx. 40 psi back pressure) |
Features
- The worldwide standard for ICP-MS applications, and the first choice for limited-volume ICP-OES samples
- Enhanced Efficiency: Although the MicroMist nebulizer operates at a lower sample flow rate, the transport efficiency is significantly higher compared to a standard concentric nebulizer.
- Reduced Interferences: The smaller droplet size of the MicroMist nebulizer has additional analytical advantages, including reduced matrix interferences and a more robust plasma.
- Tolerance to High Matrix: Although the MicroMist nebulizer is a low-flow nebulizer, it still provides a relatively high tolerance to total dissolved solids (TDS) of up to 15%. This allows it to handle a wide range of sample types... For enhanced TDS tolerance, consider adding an argon humidifier such as the Elegra.
