A31-1-QSS1

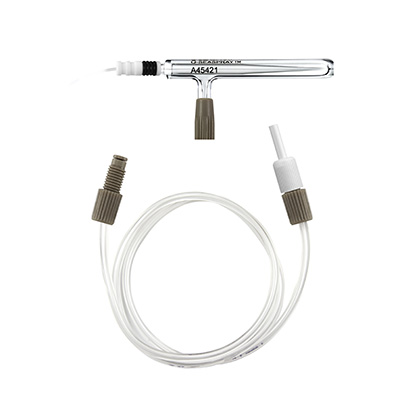

Quartz SeaSpray DC Nebulizer 1mL/min
Read more
Show less
The Quartz SeaSpray™ concentric DC nebulizer offers outstanding nebulization efficiency for trace level analyses. It offers freedom from clogging while nebulizing solutions to the limit of solubility of most mineral salts, and conferring significant sensitivity gains. The Quartz SeaSpray™ concentric DC nebulizer has the highest sensitivity for any concentric nebulizer on the market. It is specifically designed for ultra trace level analysis.
Instrument Compatibility
Thermo: Q, RQ, TQ, X Series
Specifications
| Material | Ultra Pure Quartz |
| Physical Reproducibility | High approximately ~ 1% |
| TDS Tolerance | Typically up to 20% |
| Particle Tolerance | Typically up to 210μm |
| Flow Rate | 1mL/min |
| Relative Standard Deviation (RSD's) | Low, due to highly accurate construction |
| Sample Arm Connector | Unifit Sample Connector |
| Gas Arm Connector | Direct Connection (DC) PEEK Fitting |
| Aqueous Solutions for ICP-OES | Yes |
| Aqueous Solutions for ICP-MS | Yes |
| Organic Solutions | No |
| Limited Volume | No |
| Requirement | Best Performance, Best Sensitivity |
| Precision | High precision analytical performance |
| Purity | Excellent |
| Dead Volume (V₀) | 4.0 μL (microliters) |
Features
- Outstanding Efficiency and Tolerance to Dissolved Solids
- Combines a unique self-washing tip with the revolutionary Glass Expansion VitriCone construction
- Nebulizer tip has been carefully designed with smooth surfaces to minimize adhesion of salt crystals
- Highest sensitivity of any concentric glass nebulizer on the market
- Outstanding sensitivity and precision, achieving RSD values as low as 0.26% for trace-level analyses
- Superior nebulization efficiency with minimal dead volume (4.0 μL)
- Specifically designed for ultra trace level analysis.
