A13-05-UC1

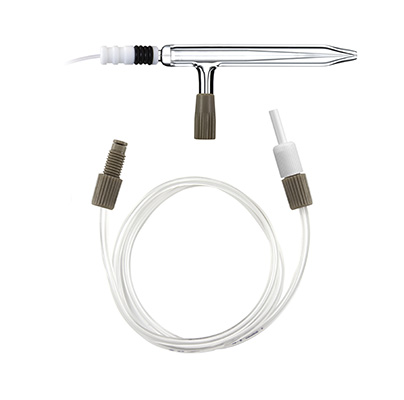

Conikal DC Nebulizer 1mL/min
Read more
Show less
The Conikal concentric nebulizer is an exceptional general-purpose nebulizer. The common sample types include routine aqueous, organic applications, and oils that do not require a more specialized design for resistance to particulates or high dissolved solids. The Conikal is recommended whenever samples contain only a moderate concentration of dissolved salts, no particulates, and no hydrofluoric acid.
Instrument Compatibility
Analytik Jena: PQ9200 Series, PQ9X00 Series
Specifications
| Material | Borosilicate glass |
| Physical Reproducibility | High approximately 1% |
| TDS tolerance | Typically up to 5% |
| High tolerance to particulates | Typically up to 210μm |
| Self-aspiration | Yes |
| Flow Rate | 1mL/min |
| Aqueous Solutions for ICP-OES | Yes |
| Organic Solutions | Yes |
| Limited Volume | No |
| Requirement | Routine Operation |
| Precision | High |
| Purity | Good |
| Sample Arm Connector | Unifit Sample Connector |
| Gas Arm Connector | Direct Connection (DC) PEEK Fitting |
Features
- An Industry Standard Concentric Design
- Lowest dead volume for rapid washout
- Low RSDs due to highly accurate construction
- Instrument Suitability: ICP-OES and ICP-MS
