Laser Ablation Adaptors for ICP

Laser Ablation is a rapidly growing sample introduction system for the introduction of solids into ICP-MS and ICP-OES. The technique is widely used in geochemical, isotopic and environmental analysis, and is also a growing area of research in multi-element imaging of biological materials.

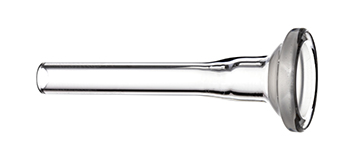

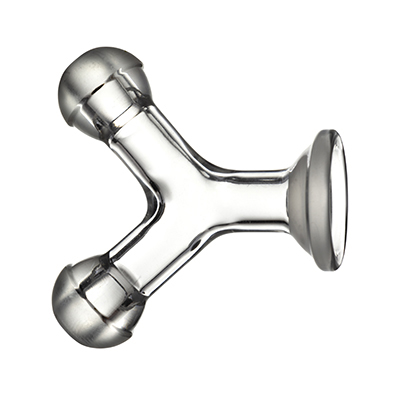

The S13 (13mm) ball and Cup connector can be used to provide an input from a laser ablation system and pneumatic nebulization for calibration. This adaptor is used when suitable solid standards are not available.

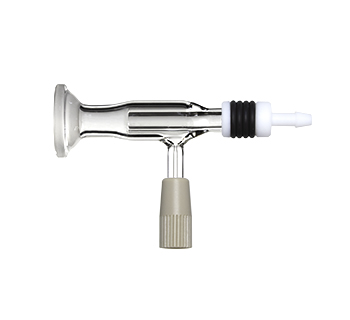

For routine 'bulk analysis' Laser Ablation, the cell output can be connected to ICP torch and make up gas added using (70-803-1600). This mixing chamber allows the ablation cell gas flow to be optimized separately from that of the plasma injector gas flow rate ensuring the best laser ablation performance without compromising plasma performance. It is designed to connect directly to the ICP torch by way of the S13 (13mm) cup and included metal ball joint clip. Also included is P/N GAZ-06-3.2B, design to directly connect soft-walled 1/8 inch ID tubing from the outlet of the Laser to the mixing chamber. (Compatible with the Agilent ® 77/78/79/88/8900 ICP-MS)

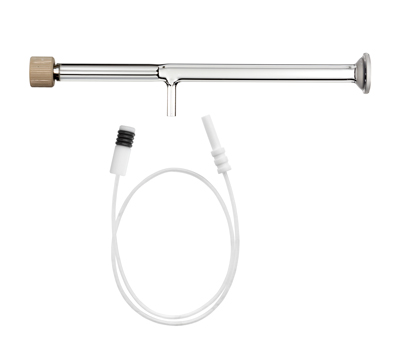

This low volume laser ablation adapter (31-808-4034) with tangential make-up gas input is used with low dead-volume laser ablation cells to directly connect with the ICP-MS torch to maintain signal intensity and precision and minimizing washout. A zero dead-volume fitting connects a 1/16 OD PEEK capillary transfer tube and an S13 (13mm) cup outlet directly connects to the ICP-MS torch without the need for complex and difficult to use direct injection torches. When used with the Agilent ® ICP-MS, this adapter connects directly to the torch whilst keeping all connections outside the torch box. (Compatible with the Agilent ® 77/78/79/88/8900 ICP-MS)

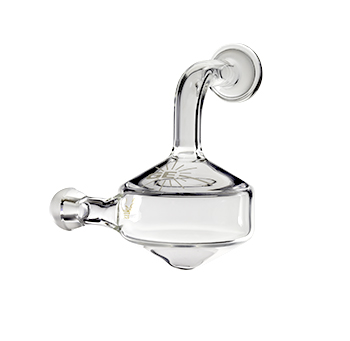

Laser Ablation Mixing Chamber with S13 (13mm) Ball Joint. Designed for routine Laser Ablation where the cell output to the ICP torch requires a mixing chamber/damper. The mixing chamber is designed to work with Teledyne™ CETAC Aris.

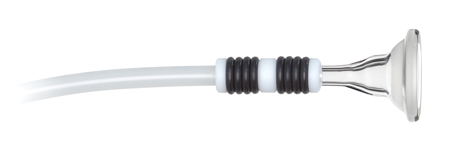

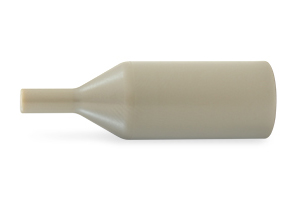

Connect your rigid 4mm OD/2mm ID laser ablation tubing directly to your Thermo Fisher Scientific ® ICP-MS torch using adapter P/N 31-808-3863 in combination with P/N GAZ-04U. (Compatible with Thermo ® Q/RQ/TQ)


Use P/N 21-809-2801 torch adapter to connect any S13 (13mm) cup laser ablation adapter to your Thermo Fisher Scientific ® ICP-MS torch. (Compatible with Thermo ® Q/RQ/TQ)

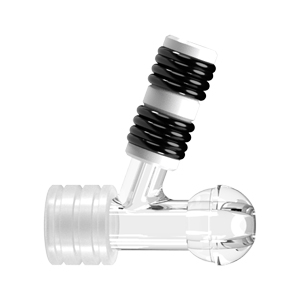

When an additional gas stream is required to be introduced, use P/N 31-808-4289 torch adapter, to connect any S13 (13mm) cup laser ablation adapter to your Thermo Fisher Scientific® ICP-MS torch (Compatible with Thermo® Q/RQ/TQ and TOFWERK® icpTOF)

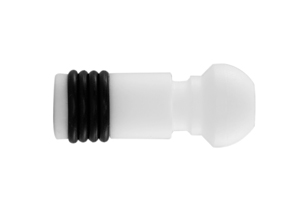

Use P/N 31-808-4107 torch adapter to connect any S13 (13mm) cup laser ablation adapter to your PerkinElmer® ICP-MS torch. (Compatible with PerkinElmer® NexION 1000, 1100, 2000, 2200, 5000)


Connect to 4mm rigid tubing by a push-fit seal.

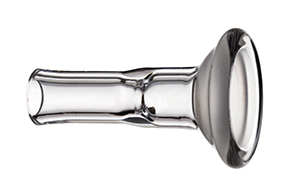

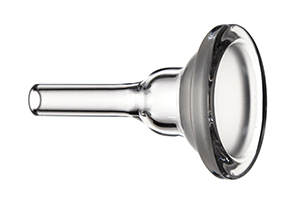

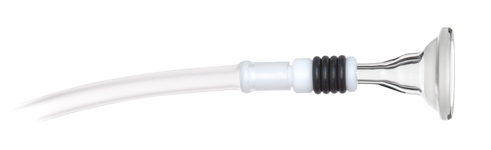

Use 31-808-3045 to connect 4mm OD transfer tube from the laser ablation cell directly to the S13 (13mm) torch ball joint. A GAZ-04U can be used to connect the 4mm rigid tubing to the inlet.


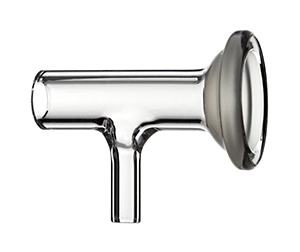

This adaptor can be used to connect 6mm/1/4


Connecto to 4mm and 8mm tubing by way of GAZ-04U and GAZ-08U

Table 1. GazFit Union Connectors (for rigid walled tubing)

Part Number Description
GAZ-04U GazFit Union 4mm (PKT.2)
GAZ-06U GazFit Union 6mm (PKT.2)
GAZ-08U GazFit Union 8mm (PKT.2)

Table 2. Standard GazFit Connectors (for soft walled tubing)

Part Number Description
GAZ-04 GazFit Connectors for 4mm OD side arm (PKT.4)
GAZ-05 GazFit Connectors for 5mm OD side arm (PKT.4)
GAZ-06 GazFit Connectors for 6mm OD side arm (PKT.4)
GAZ-08 GazFit Connectors for 8mm OD arm (PKT.2)
GAZ-0604 GazFit Connectors, 2 for 6mm OD side arms, 2 for 4mm OD side arms (PKT.4)
GAZ-06-3.2B GazFit Connectors for 6mm OD side arm with connection for 1/8inch ID tubing (PKT.4)

Download the Laser Ablation Connectors Flyer

Download the Laser Ablation System Application Note
