Glass Expansion has four decades of experience manufacturing sample introduction components for ICP-MS and has earned a world-wide reputation for quality and reliability. Continuing this tradition, we are pleased to announce the release of our TOF-ICP-MS Mass Cytometers Product line.
Glass Expansion is proud to be the first and only ICP-MS cone manufacturer with the required technology and equipment to produce the full range of ICP-MS cones entirely in-house.
Glass Expansion’s manufacturing capabilities for this include: CNC Machining, Precision Grinding, Electron Beam Welding and Electroless Nickel Plating. This results in our company being able to maintain the highest level of precision, quality and reliability standards.

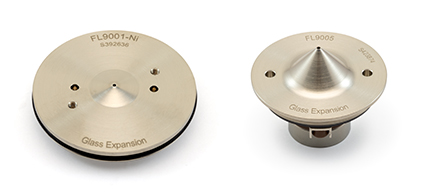

We are now able to offer our line of high quality cones for Mass Cytometers and invite you to take advantage of our Guarantee:
Part Number Description FL9001-Ni Sampler Cone, Nickel FL9005 Skimmer/Reducer Cone Assy, Nickel 70-803-1564 O-rings, Viton Skimmer Cone (PKT 5) 70-803-1565 O-rings, Viton Sampler Cone (PKT 5)
All Glass Expansion concentric glass nebulizers feature our unique VitriCone capillary construction delivering you the best possible manufacturing precision.
Glass Expansion is the only manufacturer that takes thick walled constant-bore tubing and machines the outside to a uniform aerodynamic shape. This guarantees a uniform sample channel, assuring tolerance to high matrix samples and perfect reproducibility.

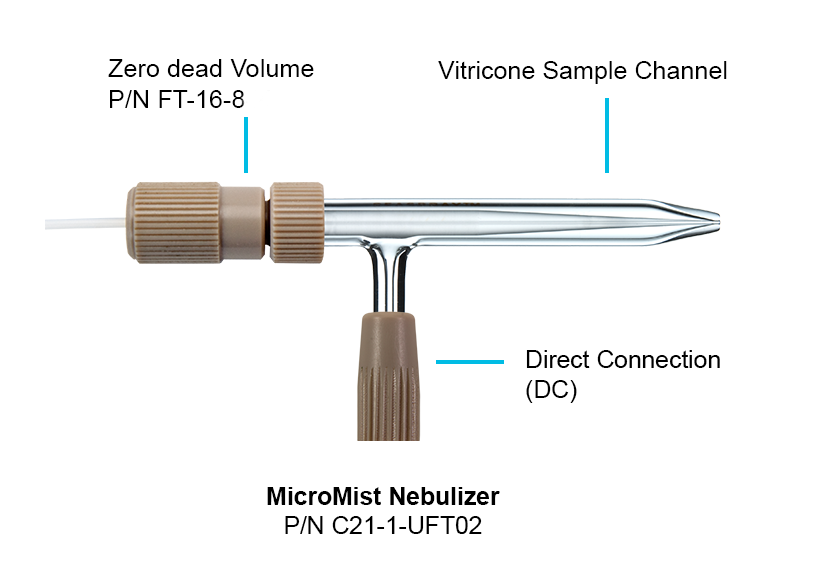

We have applied this technology along with over 30 years of nebulizer design expertise, to develop a version of our popular MicroMist nebulizer specifically for single cell applications.
Part Number Description C21-1-UFT02 MicroMist U-Series Nebulizer 0.2mL/min uptake FT-16-8-X High Pressure Zero-dead Volume Fittings Kit
With proper nebulizer maintenance you can prolong the performance and lifetime of your Glass Expansion nebulizer.
Our Eluo nebulizer cleaning tool is designed to efficiently deliver a cleaning solution through the nebulizer capillary to dislodge particle build-up and thoroughly clean the nebulizer.
We suggest using the Eluo regularly to maintain nebulizer performance and prolong nebulizer life.
We have found that using a dilute concentration of Fluka RBS-25 is the best cleaning solution. Stubborn clogs may require an overnight soak or additional cleaning with nitric acid.
Part Number Common Accessories 70-ELUO Eluo Nebulizer Cleaner for Glass concentric Nebulizers FLUKA25 Fluka RBS-25 Concentrate 1Litre
Glass Expansion coils are produced from the highest quality and purity raw materials and plated using proprietary methods to obtain maximum RF transmission efficiency.
Part Number Description 70-900-2006C RF Coil, Copper

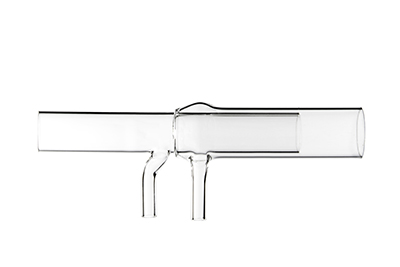

Glass Expansion manufacturers torches for over 50 different ICP models with a choice of design and varying degree of demountability. Our precision manufacturing capabilities combined with the highest quality raw materials allow us to meet or exceed all OEM specifications.
Part Number Description 30-808-8107 Quartz Torch 31-808-4066 WB Injector 31-808-4116 HT Injector
