D-Torch Demountable Torch

Glass Expansion Patented* D-Torch Demountable Torches

Download our D-Torch flyer PDF

Download our Agilent ® 5100/5110 & 5800/5900 D-Torch Flyer PDF

D-Torch Video Installation Guide

Application Notes

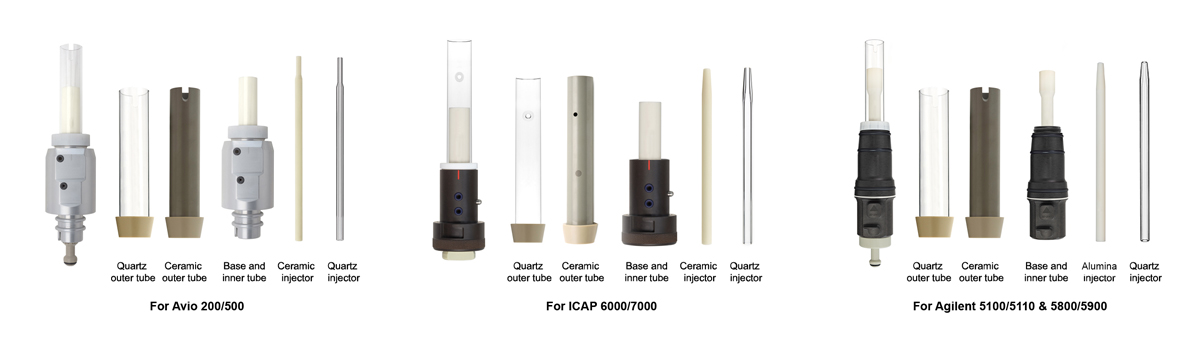

The D-Torch is a revolutionary new demountable torch design. It provides the benefits of a fully demountable torch at a significantly lower cost. The benefits of the D-Torch include:

The Benefits of a Ceramic Torch

Glass Expansion pioneered the design of ceramic torches more than 25 years ago with the PT2000 demountable torch for the ARL Maxim ICP-OES. Since then we have provided ceramic versions of our PT2000 and ABC demountable torches for several ICP models.

Ceramic outer tubes are now available for the D-Torch. In general the ceramic outer tube has a much longer lifetime, greatly reducing interruptions and downtime due to torch failure. The ceramic outer tube is of particular benefit for:

a) The analysis of wear metals in engine oils, where quartz outer tubes often suffer from a short lifetime.
b) Si determinations, where quartz outer tubes often produce high background signals.
c) Fusion samples or samples with high levels of dissolved solids which cause quartz tubes to devitrify.

Case Study 1: 10% NaCl samples

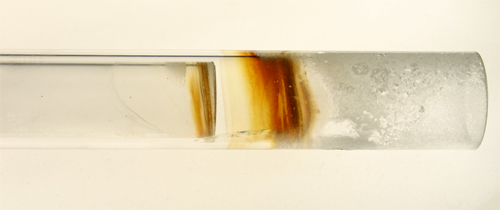

A combination of high temperature and salt deposits causes a quartz torch to devitrify. Higher concentrations of salt in the samples lead to more rapid devitrification. The quartz torch in the photo was run for only 6 hours with samples containing 10% NaCl and is already badly degraded.

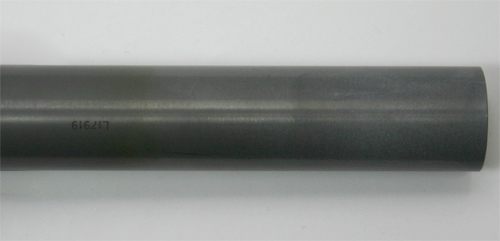

By contrast, the ceramic material does not devitrify and is not affected by salt deposits. The ceramic D-Torch in the photo was run for the same period and with the same samples as the quartz torch but shows no degradation at all.

Case Study 2: Lithium borate fusion samples

The D-Torch ceramic outer tube in the photo below has been running lithium borate fusion samples for three years at 5 - 7 days per week and 20 - 22 hours per day.

Ceramic tube after 3 years of use compared with new ceramic tube

This ceramic tube is showing clear signs of wear and tear but it has been running very demanding samples for approximately 20,000 hours. And at the time this photo was taken it was still operational. As a comparison, before the ceramic D-Torch was installed, a standard quartz torch was lasting only about 100 hours. So the ceramic torch has outlasted 200 standard quartz torches, SAVING THE USER AT LEAST $40,000.

The D-Torch is now available for the following models:

Manufacturer Model
Agilent Technologies ® 5100/5110/5800/5900
Agilent Technologies ® 700-ES Series Axial, Vista Axial
Agilent Technologies ® 700-ES Series Radial, Vista Radial, Liberty 100/120/150/200/220
Horiba ® 24, 38 & 138 Series, Ultima, Activa
Nu Instruments™ Nu Plasma
PerkinElmer ® AVIO 200/500
PerkinElmer ® Optima 8x00 Series
PerkinElmer ® Optima 4300V, 5300V, 7300V
PerkinElmer ® NexION 1000/2000
PerkinElmer ® NexION 300, 350
Spectro™ (Ametek ®) SpectroBlue™ EOP
Spectro™ (Ametek ®) SpectroBlue™ SOP
Spectro™ (Ametek ®) EOP (Modula, CIROS, Genesis, ARCOS)
Spectro™ (Ametek ®) SOP (Modula, CIROS, Genesis, ARCOS)
Thermo Fisher Scientific ® PRO Duo
Thermo Fisher Scientific ® PRO Radial
Thermo Fisher Scientific ® 6000/7000 Duo
Thermo Fisher Scientific ® 6000/7000 Radial

We will soon be releasing the D-Torch for other ICP models. Please contact enquiries@geicp.com for information on the availability of the D-Torch for your ICP.

* The D-Torch is covered by US Patents 7,847,210 B2 and 8,232,500 B2
