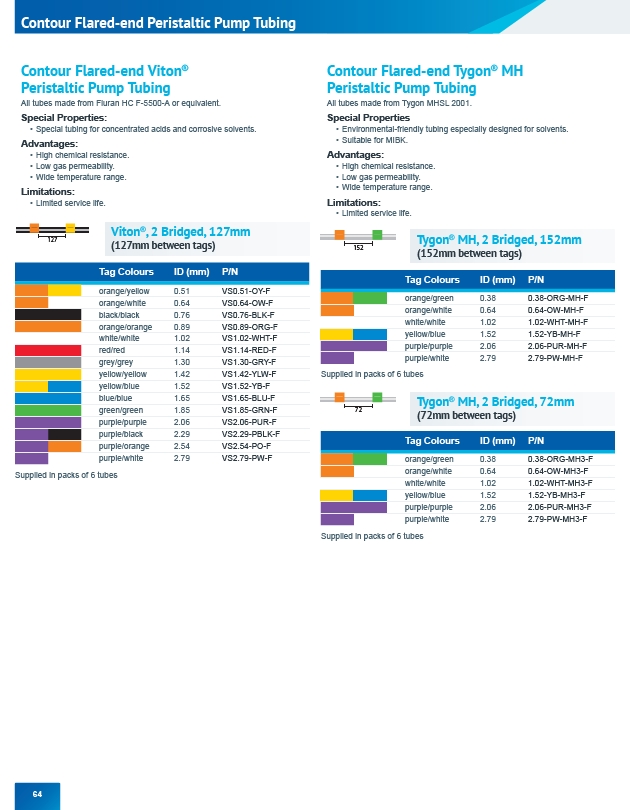

Contour Flared-end Peristaltic Pump Tubing
All tubes made from Fluran HC F-5500-A or equivalent.
Special Properties:
• Special tubing for concentrated acids and corrosive solvents.
Advantages:
• High chemical resistance.
• Low gas permeability.
• Wide temperature range.
Limitations:
• Limited service life.
64
Tag Colours ID (mm) P/N
orange/yellow 0.51 VS0.51-OY-F
orange/white 0.64 VS0.64-OW-F
black/black 0.76 VS0.76-BLK-F
orange/orange 0.89 VS0.89-ORG-F
white/white 1.02 VS1.02-WHT-F
red/red 1.14 VS1.14-RED-F
grey/grey 1.30 VS1.30-GRY-F
yellow/yellow 1.42 VS1.42-YLW-F
yellow/blue 1.52 VS1.52-YB-F
blue/blue 1.65 VS1.65-BLU-F
green/green 1.85 VS1.85-GRN-F
purple/purple 2.06 VS2.06-PUR-F
purple/black 2.29 VS2.29-PBLK-F
purple/orange 2.54 VS2.54-PO-F
purple/white 2.79 VS2.79-PW-F
127
Supplied in packs of 6 tubes
All tubes made from Tygon MHSL 2001.
Special Properties
• Environmental-friendly tubing especially designed for solvents.
• Suitable for MIBK.
Advantages:
• High chemical resistance.
• Low gas permeability.
• Wide temperature range.
Limitations:
• Limited service life.
Tag Colours ID (mm) P/N
orange/green 0.38 0.38-ORG-MH-F
orange/white 0.64 0.64-OW-MH-F
white/white 1.02 1.02-WHT-MH-F
yellow/blue 1.52 1.52-YB-MH-F
purple/purple 2.06 2.06-PUR-MH-F
purple/white 2.79 2.79-PW-MH-F
152
Supplied in packs of 6 tubes
Tag Colours ID (mm) P/N
orange/green 0.38 0.38-ORG-MH3-F
orange/white 0.64 0.64-OW-MH3-F
white/white 1.02 1.02-WHT-MH3-F
yellow/blue 1.52 1.52-YB-MH3-F
purple/purple 2.06 2.06-PUR-MH3-F
purple/white 2.79 2.79-PW-MH3-F
72
Supplied in packs of 6 tubes
Contour Flared-end Viton®
Peristaltic Pump Tubing
Contour Flared-end Tygon® MH
Peristaltic Pump Tubing
Viton®, 2 Bridged, 127mm
(127mm between tags) Tygon® MH, 2 Bridged, 152mm
(152mm between tags)
Tygon® MH, 2 Bridged, 72mm
(72mm between tags)
