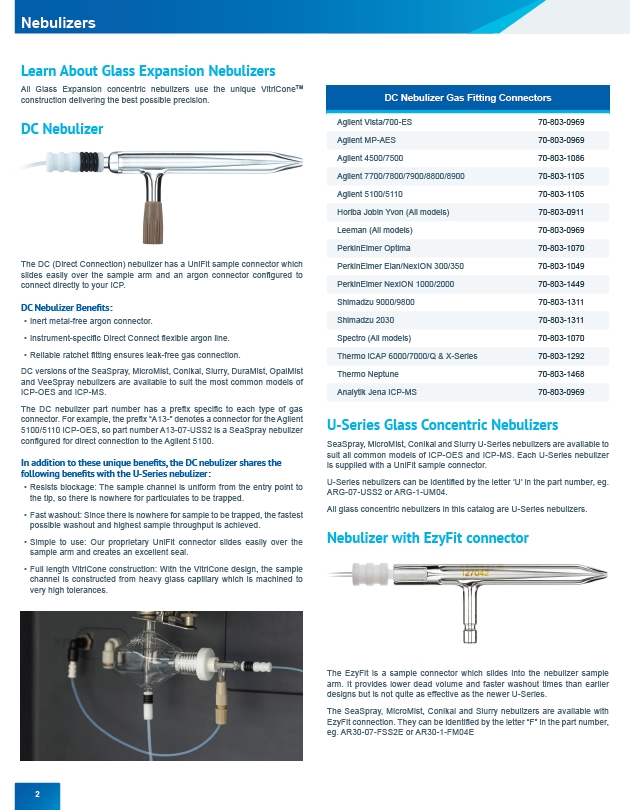

Learn About Glass Expansion Nebulizers
All Glass Expansion concentric nebulizers use the unique VitriConeTM
construction delivering the best possible precision.
DC Nebulizer
The DC (Direct Connection) nebulizer has a UniFit sample connector which
slides easily over the sample arm and an argon connector configured to
connect directly to your ICP.
DC Nebulizer Benefits:
• Inert metal-free argon connector.
• Instrument-specific Direct Connect flexible argon line.
• Reliable ratchet fitting ensures leak-free gas connection.
DC versions of the SeaSpray, MicroMist, Conikal, Slurry, DuraMist, OpalMist
and VeeSpray nebulizers are available to suit the most common models of
ICP-OES and ICP-MS.
The DC nebulizer part number has a prefix specific to each type of gas
connector. For example, the prefix “A13-” denotes a connector for the Agilent
5100/5110 ICP-OES, so part number A13-07-USS2 is a SeaSpray nebulizer
configured for direct connection to the Agilent 5100.
In addition to these unique benefits, the DC nebulizer shares the
following benefits with the U-Series nebulizer:
• Resists blockage: The sample channel is uniform from the entry point to
the tip, so there is nowhere for particulates to be trapped.
• Fast washout: Since there is nowhere for sample to be trapped, the fastest
possible washout and highest sample throughput is achieved.
• Simple to use: Our proprietary UniFit connector slides easily over the
sample arm and creates an excellent seal.
• Full length VitriCone construction: With the VitriCone design, the sample
channel is constructed from heavy glass capillary which is machined to
very high tolerances.
2
DC Nebulizer Gas Fitting Connectors
Agilent Vista/700-ES 70-803-0969
Agilent MP-AES 70-803-0969
Agilent 4500/7500 70-803-1086
Agilent 7700/7800/7900/8800/8900 70-803-1105
Agilent 5100/5110 70-803-1105
Horiba Jobin Yvon (All models) 70-803-0911
Leeman (All models) 70-803-0969
PerkinElmer Optima 70-803-1070
PerkinElmer Elan/NexION 300/350 70-803-1049
PerkinElmer NexION 1000/2000 70-803-1449
Shimadzu 9000/9800 70-803-1311
Shimadzu 2030 70-803-1311
Spectro (All models) 70-803-1070
Thermo iCAP 6000/7000/Q & X-Series 70-803-1292
Thermo Neptune 70-803-1468
Analytik Jena ICP-MS 70-803-0969
U-Series Glass Concentric Nebulizers
SeaSpray, MicroMist, Conikal and Slurry U-Series nebulizers are available to
suit all common models of ICP-OES and ICP-MS. Each U-Series nebulizer
is supplied with a UniFit sample connector.
U-Series nebulizers can be identified by the letter ‘U’ in the part number, eg.
ARG-07-USS2 or ARG-1-UM04.
All glass concentric nebulizers in this catalog are U-Series nebulizers.
Nebulizer with EzyFit connector
The EzyFit is a sample connector which slides into the nebulizer sample
arm. It provides lower dead volume and faster washout times than earlier
designs but is not quite as effective as the newer U-Series.
The SeaSpray, MicroMist, Conikal and Slurry nebulizers are available with
EzyFit connection. They can be identified by the letter “F” in the part number,
eg. AR30-07-FSS2E or AR30-1-FM04E
