Fittings and Connectors

The most common fittings and connectors are shown below. See Accessories for the full range of fittings and connectors.

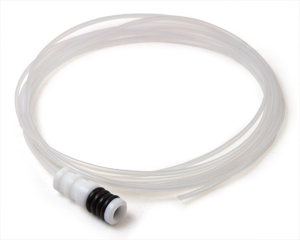

UniFit Connector

The UniFit sample tube connector is used with U-Series nebulizers, recognized by the letter U in the part number (eg. ARG-07-USS2). It is also used with DuraMist, and OpalMist nebulizers. The tubing is available in a range of internal and external diameters and the part numbers have the prefix NFT (eg. NFT-075). See full range of UniFit connectors.

EzyFit Connector

The EzyFit sample tube connector is used with EzyFit nebulizers, recognized by the letter F in the part number (eg. AR30-07-FSS2E). The tubing is available in a range of internal and external diameters and the part numbers have the prefix EZT (eg. EZT-075). See full range of EzyFit connectors.

EzyLok Kit, EL-1

The Ezylok is a quick-connect fitting for the nebulizer argon connection.

LC Fittings Kit, FT-16-8

This kit provides quick and easy connection between an HPLC system and any U-Series nebulizer.

Helix CT Locking Screw with Seal 70-803-1439

The Helix CT Locking Screw is supplied with all spray chambers which have the Helix nebulizer interface.

Helix CT Seal

The Helix CT Seal is supplied with all spray chambers which have the Helix nebulizer interface. Replacements are supplied in a pack of 4 under part number 70-803-1456.

Drain Connector

Spray chambers with a 4mm drain outlet are supplied with a UniFit connector and tubing. Replacements are supplied in packs of 3 as UFT-075 for 1.3mm OD tubing or UFT-16-75 for 1.6mm OD tubing or UFT-2-86 for 2.0mm OD tubing.

GazFit Connectors

The GazFit connector provides a simple and reliable way to connect the argon lines to the torch. GazFit connectors are available to suit torches with 8mm (GAZ-08), 6mm (GAZ-06), 5mm (GAZ-05), 4mm (GAZ-04) and 6mm/4mm (GAZ-0604) diameter side arms.

Reagent Tube with PTFE Sinker, 70-803-0752

This tubing ensures that the sample tubing stays in the solution.

O-Ring for Nebulizer Seal

This o-ring is used in spray chambers which do not have the Helix fitting. It is supplied in a pack of 10 as part number VT-009.
